This article describes strategies to improve the speech-to-text recognition of information required for user verification and other processes.

In voice projects, it might be necessary to recognize statements that aren't part of the standard vernacular. In other words, phrases and statements are not recognized by the native STT systems. A few examples are:

• Uncommon names or names which are spelled with an accent
• Addresses, especially street names
• Product names
• Uncommon spelling in general

Often these need to be recognized as part of a user verification process. For example, the user must give their name and address to confirm their identity.

Anyone who has tried setting this up knows that voice specifically can cause many problems in this regard, which is why we have developed different strategies to compensate for these difficulties. These implement both functionalities already available in the STT systems as well as additional strategies using Cognigy-specific functionality.

Context Phrases/Hints

AudioCodes and Cognigy's native Voice Gateway allow you to use so-called "Context Phrases" or "Hints" to train the virtual agent to recognize certain phrases.

In other words, you are telling the Speech to Text provider that it should expect a certain word that it otherwise might not recognize. In the below use cases, we will show you how.

Static Phrases within Context

Static Phrases: Cognigy Voice Gateway

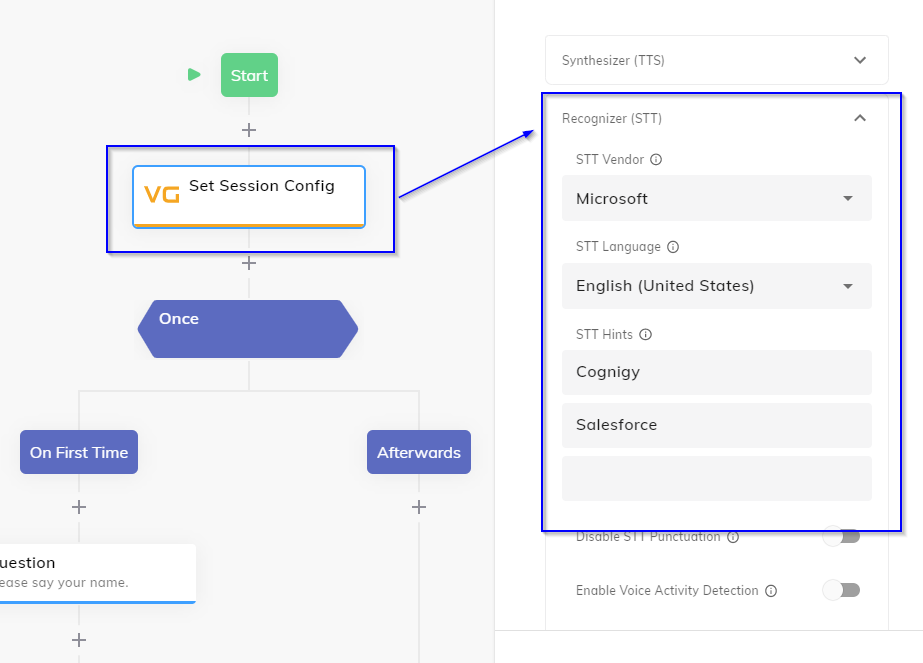

The settings for this in Cognigy Voice Gateway can be found in the "Set Session Config" Node in the "Recognizer (STT)" section. You can simply add phrases to the "STT Hints" fields. In this example, we are using company names. These fields increase dynamically, and each phrase needs to be added to its own field.

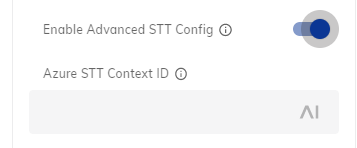

If you already have a custom speech model in your Microsoft Azure instance, you can add these settings in the "Enable Advanced STT" section:

Static Phrases: AudioCodes

This can also be done in AudioCodes.

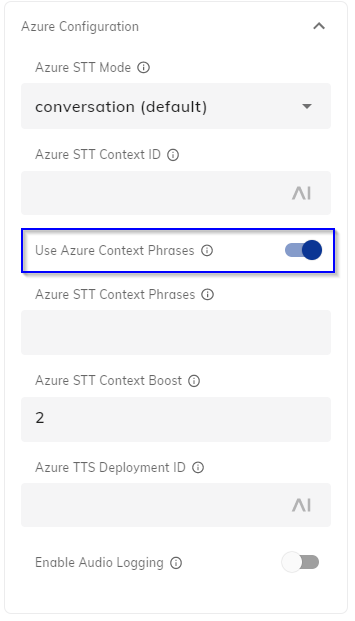

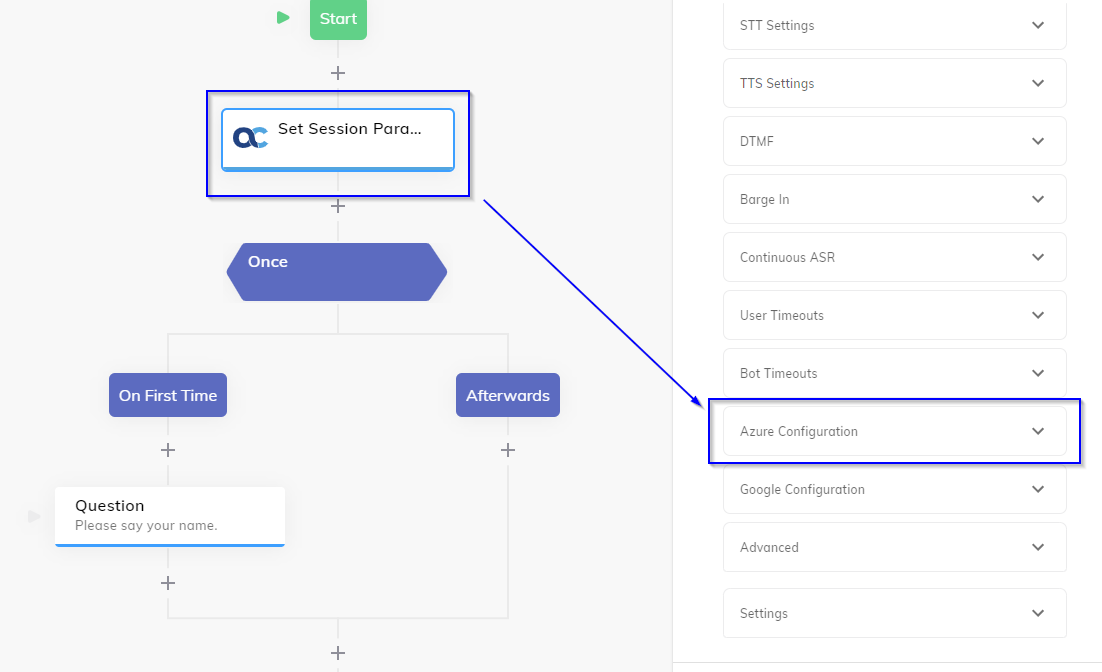

In the Set Session Parameters Node, go to the "Azure Configuration" section.

Open this section and activate the "Use Azure Context Phrases" toggle.

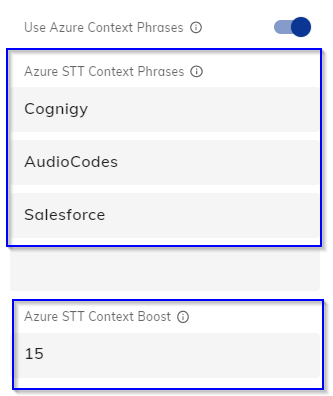

You can then add information to the "Azure STT Context Phrases" field to improve recognition of certain words. The number of fields will increase dynamically. Each phrase should be added to its field. Otherwise, they will not be recognized.

With the value in the "Azure STT Context Boost" field, we determine how strong the recognition should be. This can be between 1 (low) and 20 (high). This is good if the given statement sounds similar to other more common words (such as `AudioCodes` vs. `Audio Codes`).

You can also add information if you already have a custom speech model set up in your Azure account. Contact your Customer Success Manager if you have more questions about this.

Dynamic Phrases within Context

You might also have situations where you don't know what phrases need to be recognized ahead of time. For example, if you have a verification process and need a user's street address or name.

If you can call up the user's information with, for example, an API, we can also change the phrases to be recognized dynamically.

In both cases, we assume you can create an array of phrases in a pattern similar to this, which can be saved to the context:

{
  "names":[
    "Heltewig",
    "Satoshi"
  ]
}

Dynamic Phrases: Cognigy Voice Gateway

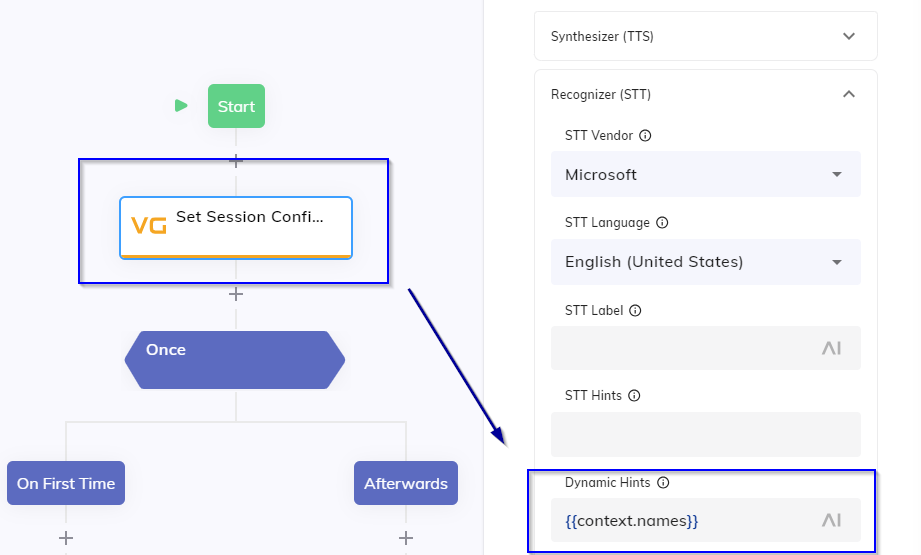

In the native Cognigy Voice Gateway, we can use the  Recognizer (STT)

In this case, we assume we already have an array of phrases in the context under the variable "name".

Dynamic Phrases: AudioCodes

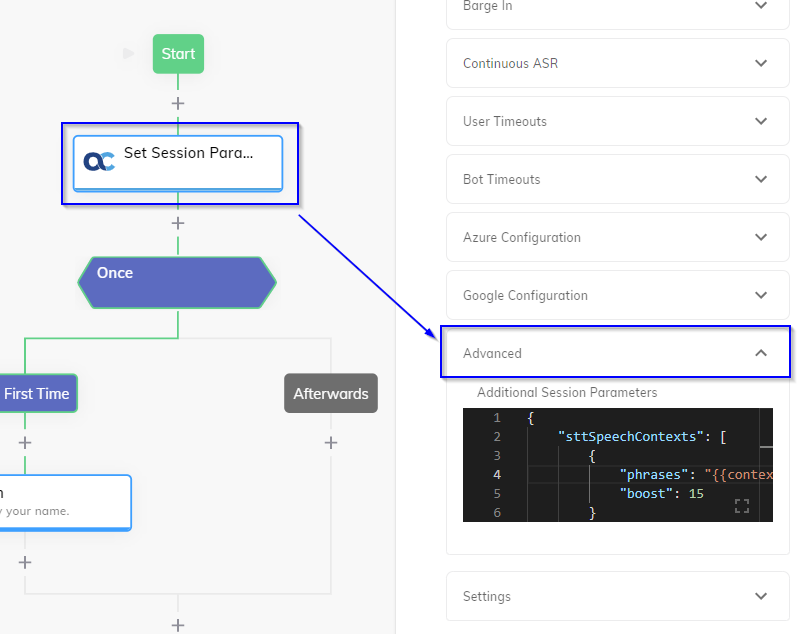

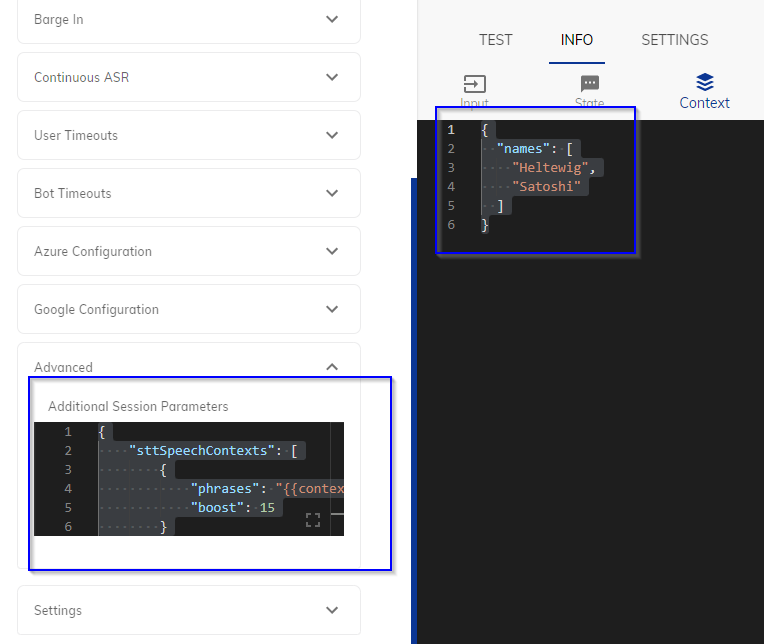

In AudioCodes, go into your "Set Session Parameters" node and open the "Advanced" section. You will find a field called "Additional Session Parameters", which can be used to add JSON information.

In this field, add the following JSON pattern:

{
    "sttSpeechContexts":[
        {
            "phrases":"{{context.names}}",
            "boost":15
        }
    ]
}

The "phrases" variable is the list of phrases as an array. We assume the array is in the context of the session and is called "names", and we use CognigyScript to change this value dynamically. In the context itself, it should look something like this:

{
  "names":[
    "Heltewig",
    "Satoshi"
  ]
}

This will allow us to change the Context Phrases dynamically for each session.

Fuzzy Search / Fuzzy Matching

If using context phrases still doesn't work for your use case, then it is also possible to use the Fuzzy Search Node and try to estimate the user input. In other words, to match what the STT understood compared to what is expected.

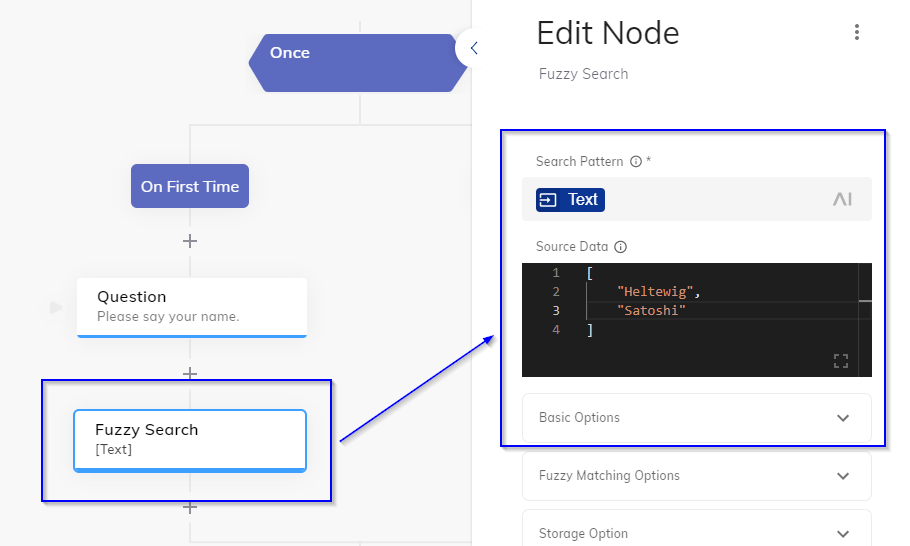

The Fuzzy Search Node also expects an array with the values which it needs to match against in a similar pattern to the one's array we used for the context phrases:

[
    "Heltewig",
    "Satoshi"
]



Fuzzy Search: Static Phrases

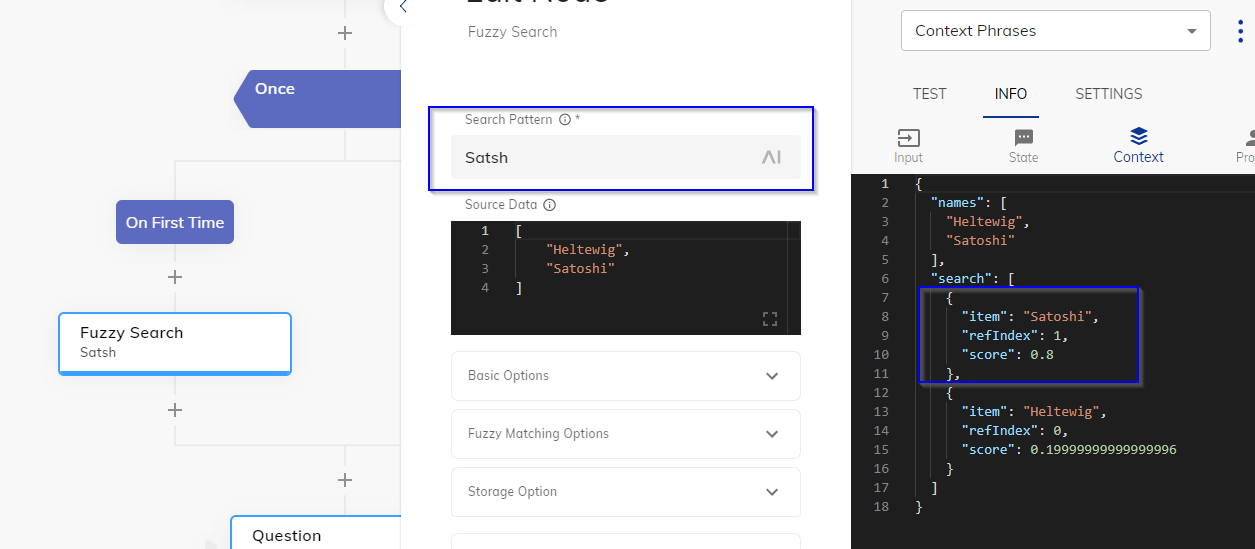

The node will compare the input and the array, return the values, and score how close the input and value are. The closer the score to "1", the closer the match.

Of course, the value in "Search Pattern" can also be replaced by tokens or Cognigy script.

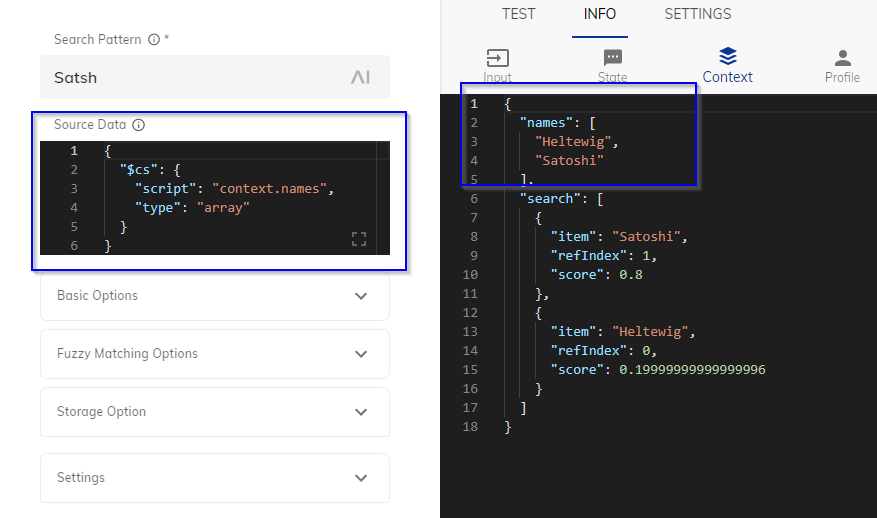

Fuzzy Search: Dynamic Phrases

If you wish to add the values in the array dynamically, replace the array in the Source Data field with the following:

{
  "$cs":{
    "script":"context.names",
    "type":"array"
  }
}

This will tell the search to look in the "names" array in the context object.

NLU Transformers

You can also use NLU transformers to dynamically change how certain phrases are recognized. Often NLU transformers are used to integrate external NLU systems into Cognigy. However, we can also use it to manipulate data directly in the Cognigy NLU.
You can read more about transformers here.

A good example of when to use Transformers is numbers which aren't always transcribed properly by the STT.

Here is a short example of using Pre-NLU transformers to recognize numbers such as 'Septante' and 'Nonante' in Belgian French, which oftentimes presents a challenge to STT systems.

preNlu:async({ text, data, language })=>{
        if(language ==='fr-FR'){ // Check if language is French
            data["suggestion"]="No suggestions found";
            const numbers ={ // Define numbers
                "zéro":0,
                "un":1,
                "deux":2,
                "trois":3,
                "quatre":4,
                "cinq":5,
                "six":6,
                "sept":7,
                "huit":8,
                "neuf":9,
                "septante":70,
                "nonante":90,
                "et":""
            };

            function convertToDigit(customerNumber){
                customerNumber = customerNumber.split(" ").map(customerNumber => customerNumber.toLowerCase());
                customerNumber.forEach((group, i)=>{
                    if(numbers[group] !== undefined){
                        customerNumber[i]= numbers[group].toString()
                    } else {
                        if(!isNaN(parseInt(group))){
                            let num = parseInt(group).toString().split("").join(" ")
                            customerNumber[i]= num
                        }
                    }
                })
                customerNumber = customerNumber.join(' ');
                return customerNumber;
            }
            data["suggestion"]= convertToDigit(text)
            text = convertToDigit(text)
        }
        return{
            data,
            text
        };
    }

This will manipulate the user input before it is sent to the virtual agent, which means the actual virtual agent will not notice the manipulation. If you need help setting this up, please contact a consultant of your trust or write to our support. We'll help you.

Lexicons

Lexicons can also be used to recognize phrases that sound similar. A great explanation can be found here: Voice Gateway – Handling Homophones.
